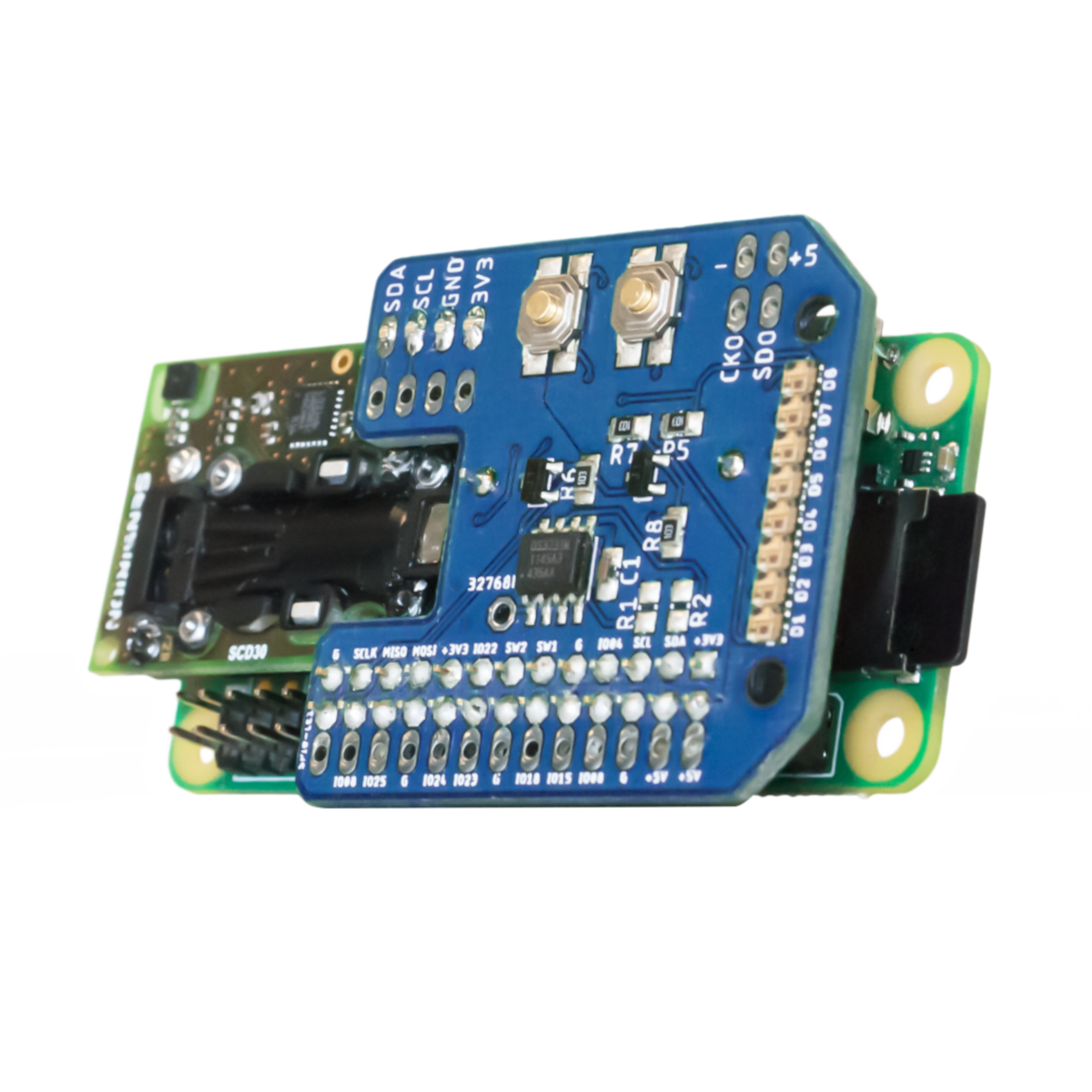

CO2 logger development kit

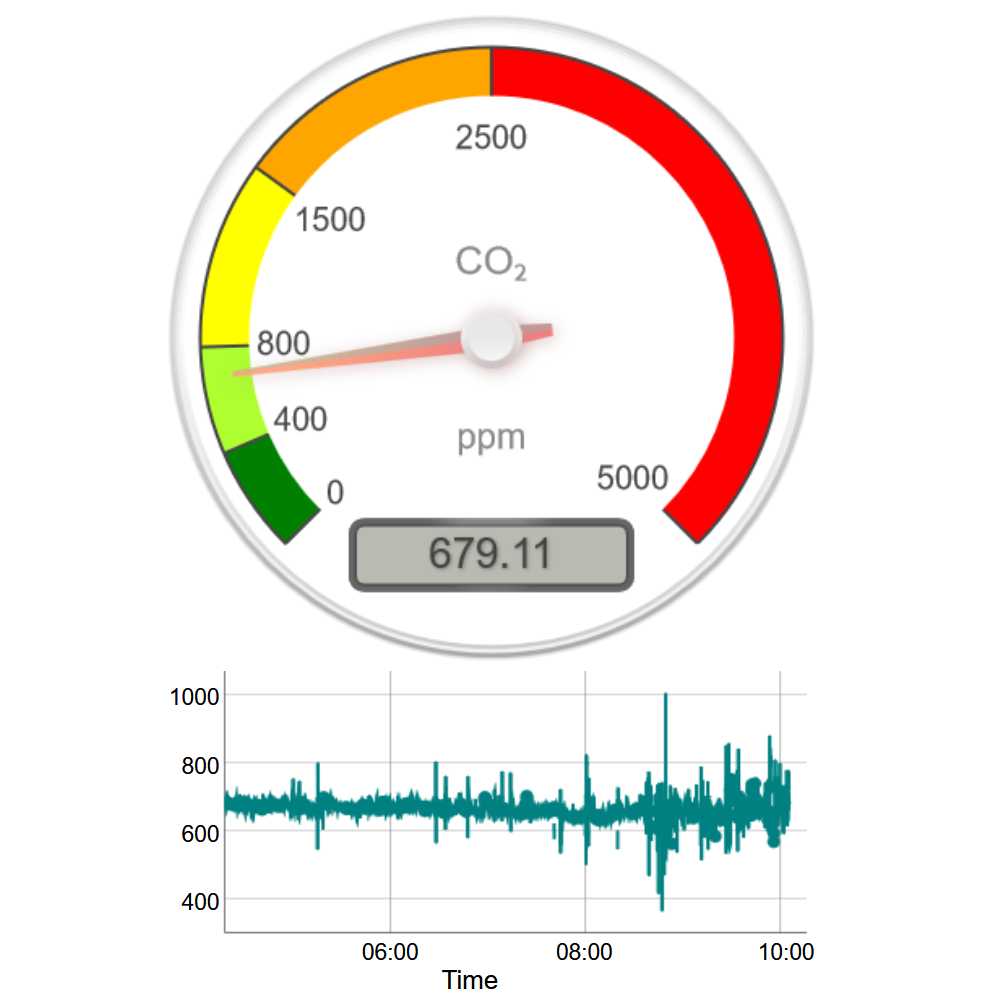

Visualisation of CO2 levels measured with CO2 logger
Visualisation of CO2 levels measured with CO2 logger

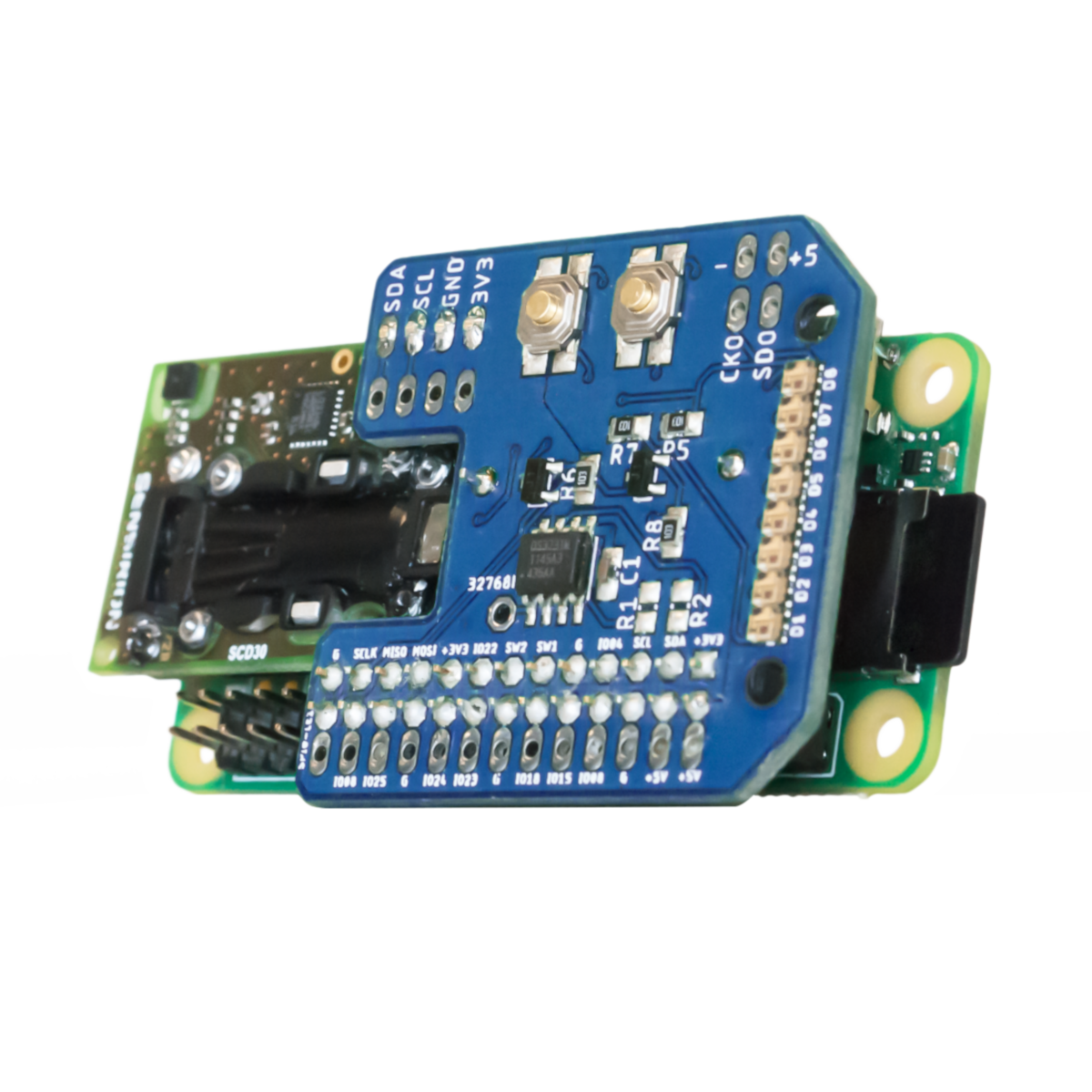

CO2-Logger development kit

129,90 €

Verfügbar bei Nachlieferung

 €
Kategorie:

Beschreibung

The CO2-Logger complete package comes pre-assembled – ready-to-use – and allows you to log the CO2 levels of your direct environment.

Our newly developed module enables accurate and exact measurement of carbon dioxide (CO2) levels indoor, outdoor, stationary and mobile.

The set includes a new PCB board, the SCD30, and a real-time clock, enabling your Pi to accurately measure carbon dioxide emissions in- and outside.



The kit to install the Sensirion SCD30 CO2 sensor to your Raspberry Pi.



Applications

  • Satisfy your curiosity
  • Monitor your CO2 exposure
  • Explore your environment
  • Control indoor air quality
  • Upscale your productivity
  • Report on climate

Key features

Hardware

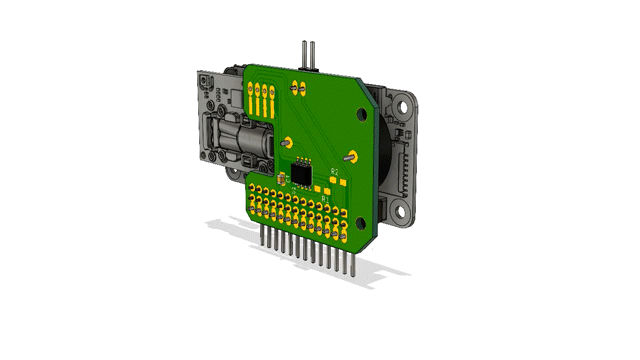

  • Printed circuit board
    Connect the SCD30, RTC and LEDs to any Raspberry Pi
  • SCD30 – sensor module
    CO2 sensor from Sensirion to measure real CO2 values
  • Real-time clock
    DS3231 module ensuring accurate data logging (CR2032 holder)
  • Raspberry Pi Zero/Raspberry Pi 4 (produced by the Raspberry Pi Foundation)
    Small but capable computer useful for various applications

Additional components below



Choose to include an SD-card and you will receive our ready-to use Raspbian image.

The image has the Prometheus Data Base installed and configured for the SCD30.

Our web front-end based on Angular immediately shows the current CO2-levels.



co2, log, test, co2 levels, logger, carbon dioxide, emissions, visualisation



Are you particularly skilled and creative? Enjoy the sensation of creating your own style of data visualisation by adapting our Open Source Code on GitHub.



Software



Everything comes soldered, mounted, and ready-to-log.

Get your CO2 logger, enhance your senses, and explore your environment.



Additional components

  • LEDs
    • 8 RGB “DotStar” APA102-LEDs (SPI level shifter included)
    • Connector for additional chained LED strip (not included)
  • 2 push buttons (one preconfigured for shutdown)
  • External connectors
    • I2C interface
    • UART
    • GPIOs
    • Through-hole pads for the outer header row (5V, GND, UART, 8 GPIOs)
  • Headers
    • 2×13 female (for Raspberry)
    • 1×4 male (connecting the SCD30)
  • M2.5×11 brass spacers
  • 4 torx screws for mounting it to a Raspberry Pi Zero
  • All required basic electronic components, like resistors and capacitors

Optional components

  • Particulate Matter Sensor: Sensirion SPS30 connected (cable included)
  • Environmental Sensor (Pressure/relative humidity/temperature): Bosch BME280
  • Ambient Luminosity Sensor: ams TSL2561
  • Air temperature sensor: DS18B20 with 1m cable

If you need any additions, like a housing or LED-Strip for visualizing sensor levels, just contact us directly at info@unraveltec.com!



We provide you with an easy-to-use and fun solution for your curiosity and health-awareness.

Get your Raspberry Pi sensor to test CO2 levels and to identify and eliminate CO2 emissions.

The package comes with all required components, soldered, mounted and ready-to-log.

co2-logger, co2 logger, data logger, pcb

Disclaimer

With our devices we indicate the CO2 content in the air and recommend ventilation. This reduces the risk of infection. A reduced residual risk cannot be excluded. It is of course still possible to become infected if, for example, other hygiene measures such as hand hygiene, keeping your distance and wearing a mouth and nose protector are not observed.

We do not take responsibility for any infections that may occur despite the use of our equipment!
